Skid Steer Industrial Jib Attachment | Haugen

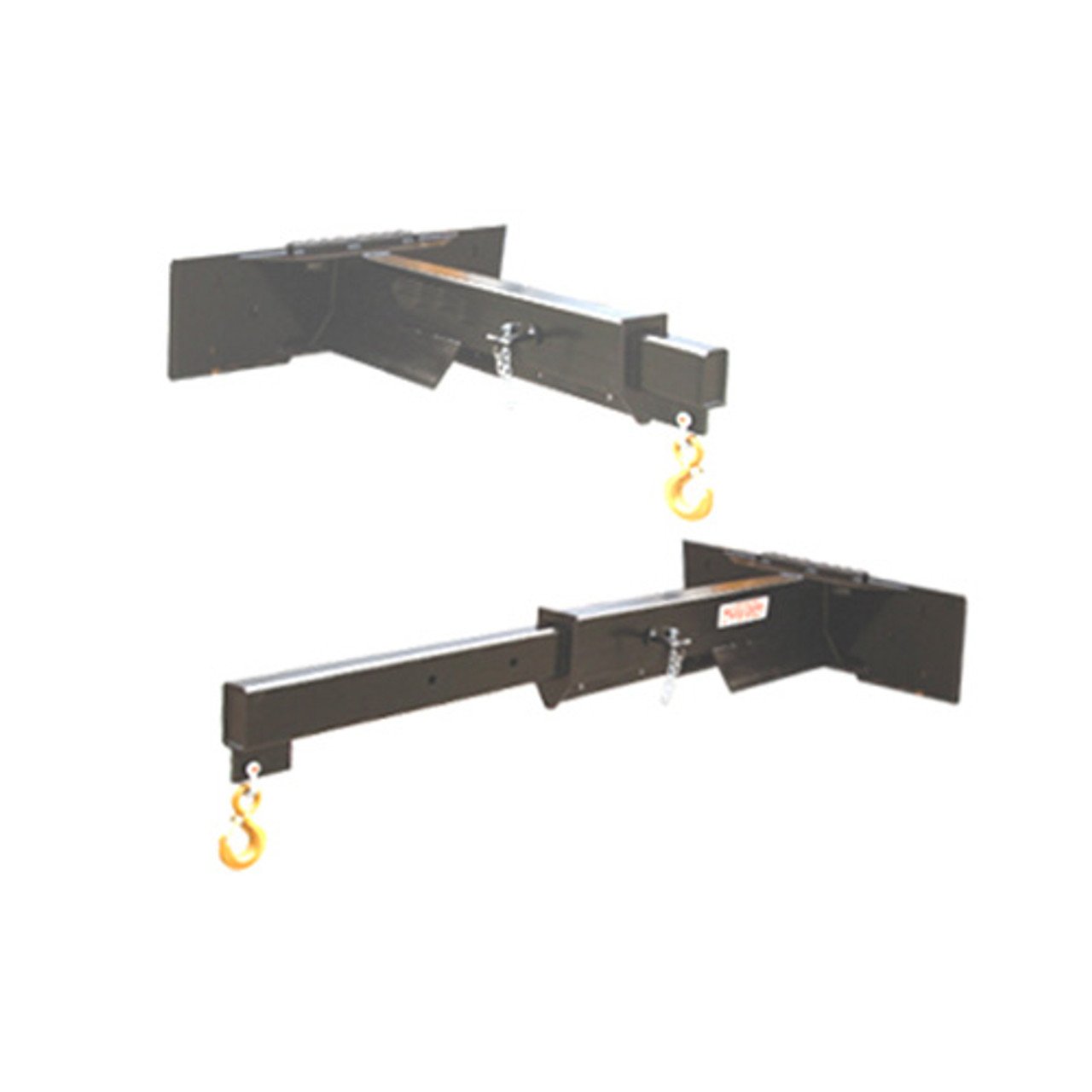

The Haugen Skid Steer Industrial Jib is a highly functional attachment designed to increase the lifting capabilities of your skid steer. It offers up to 8 feet of reach, with 7 manually adjustable positions, allowing you to handle and place heavy materials with precision. Whether you’re lifting beams, pipes, or other large objects, this jib makes it easier to manage heavy loads in a variety of job site conditions.

With a capacity of 2000 lbs at its maximum 8-foot extension, this jib provides a reliable solution for material handling tasks. The telescoping arm adjusts between 5 and 8 feet, giving you the flexibility to adapt to different lifting needs. The built-in 15-degree angle is engineered to maximize rollback, which enhances the jib’s stability during lifting operations. Additionally, the attachment is equipped with a 5-ton eye hook, offering a secure connection point for hoisting.

• Mounts to Skid Steer using the Universal Quick Attach System.
• Capacity of 2000 lbs. @ 8 ft.
• Telescoping range from 5 to 8 ft.
• Maximized roll-back with 15 degree built-in angle.
• 7 manually adjustable positions (listed below).
• Comes with 5 ton eye hook.

1. 27.75″
2. 39.75″
3. 51.75″
4. 63.25″
5. 75.25″
6. 87.25″
7. 97.25″
