High Flow Cold Planer | Blue Diamond

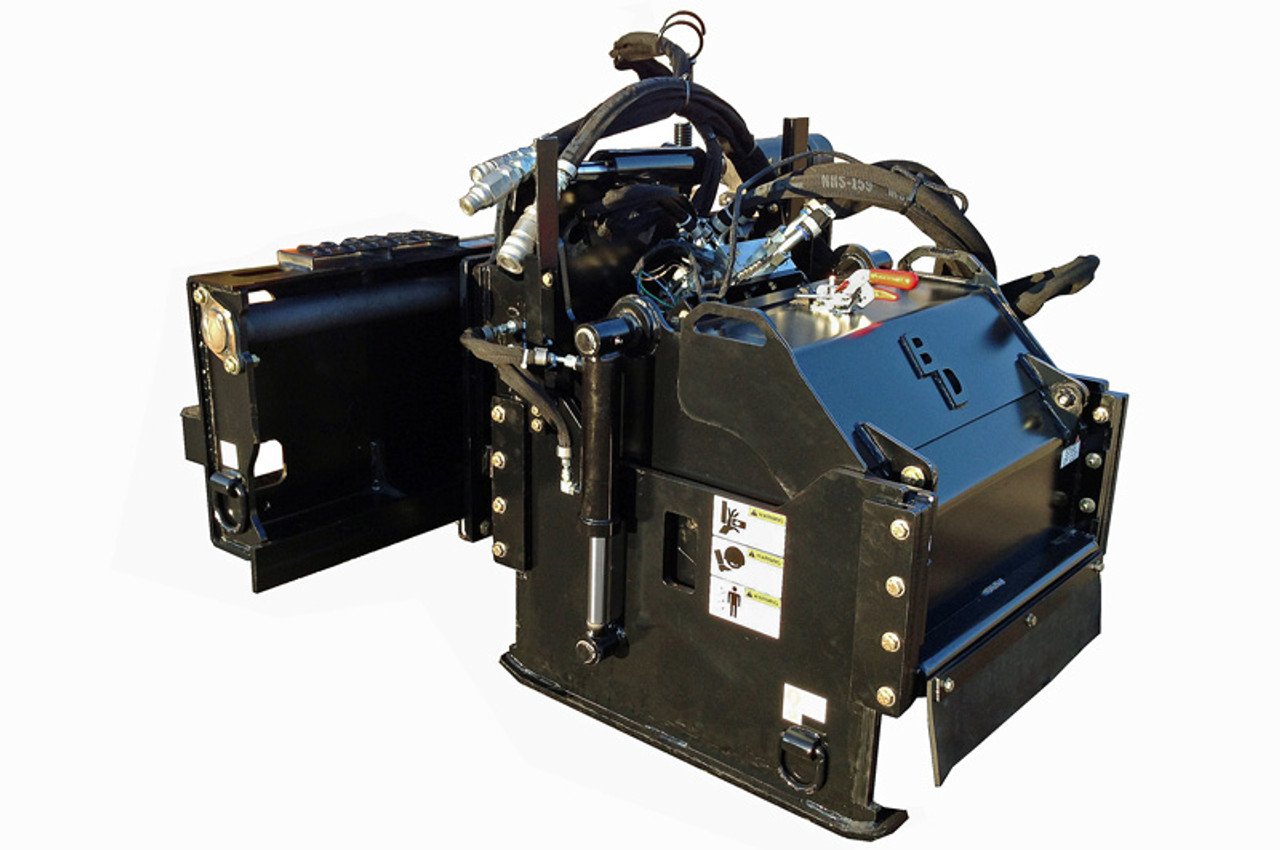

The High Flow Cold Planer from Blue Diamond Attachment has been designed for industrial-grade concrete milling and resurfacing. To ensure reliable and durable performance, Blue Diamond has sourced some of the most trusted components in the industry. The high drum weight of this unit, combined with its construction and design, significantly reduces vibration, resulting in more efficient operation across the board. High-end components include: Sauer piston motor, Fairfield planetary hub, double-hung drum with a large bearing on the non-motor side—tooth design features: Rocket Fin teeth and V-Tooth pattern setup.

When you’re on the job, putting your equipment to the test, you need reliable attachments that you can trust. Fine adjustment and grade control is made possible thanks to adjustable side runners, while Blue Diamond’s large access over makes for easier (and safer) tooth replacement.

Low Flow Model Available: Click here to learn more about the Blue Diamond Low Flow Cold Planer Attachment

Select Product Options Above

• Reliable Sauer Piston motor
• Trusted Fairfield planetary hub
• High torque, planetary drive
• Reduced vibration for increased productivity
• Huge access cover for easier tooth replacement (faster and safer)
• Double hung drum with large bearing provides long-lasting performance
• 16″-48″ grinding widths means there’s a model to fit your machine and application
• 5/8″ thick drum tube
• Fully supported parts and teeth replacements
• Optional Water Kit (please call for availability)
• Made in the USA

• Skid Steer High Flow Cold Planer Attachment
• Universal skid steer mounting plate
• Hydraulic hoses
• Flat Faced couplers
• Owner’s manual
